Helius Composite overview video (2.55 min.)
Helius Composite simulates composite material behaviour
Using an expansive material database of composite materials, Helius Composite simulates the material behaviour of composite components without the need for finite element analysis (FEA) software.
Helius Composite features
-

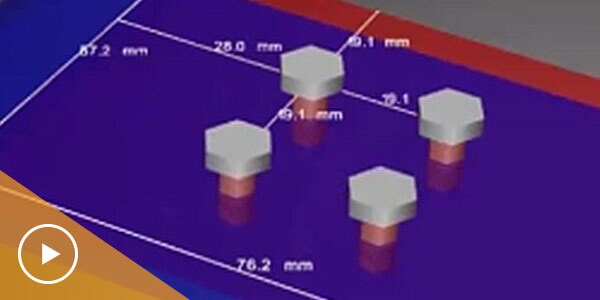

Bolted connections
Compute strength margins for bolted components through multiple composite laminates to aid with bolt pattern designs. (video: 1.44 min.)
Learn more -

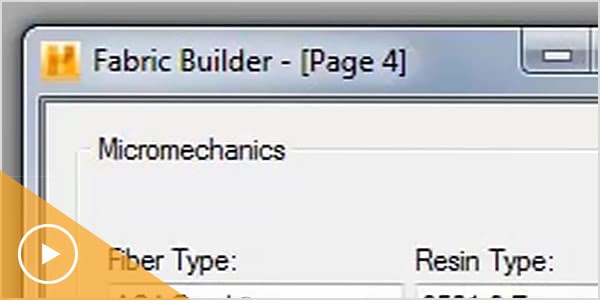

Fabric builder
Build custom woven fabric materials by selecting fabric type and base to compute lamina properties. (video: 4.46 min.)
Learn more -

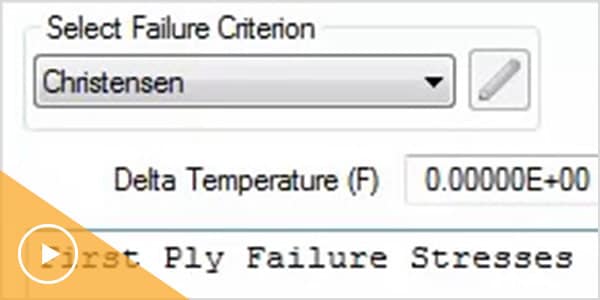

Laminate analysis toolset
Set up the laminate layer composition to understand stiffnesses, calculate first-ply failure strength and identify progressive failure of your structure. (video: 4.18 min.).
Learn more -

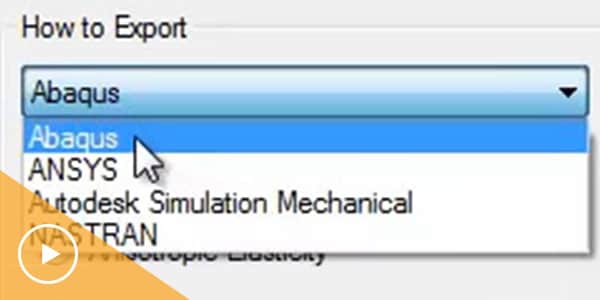

Material export to FEA
Export lamina material properties to various FEA structural input files. (video: 2.23 min.)
Learn more
Subscribe now
Flexible subscription options available. Includes support and more.
